| Vehicle type | BYD f3 |
| System | engine |
| Logistics | Express, air, sea |
| place of origin | Shiyan, Hubei, China |
| OE | See attached table |
| Package | Support customization |
| Saleable place | Worldwide |
| After-sales time | 6-12 months |

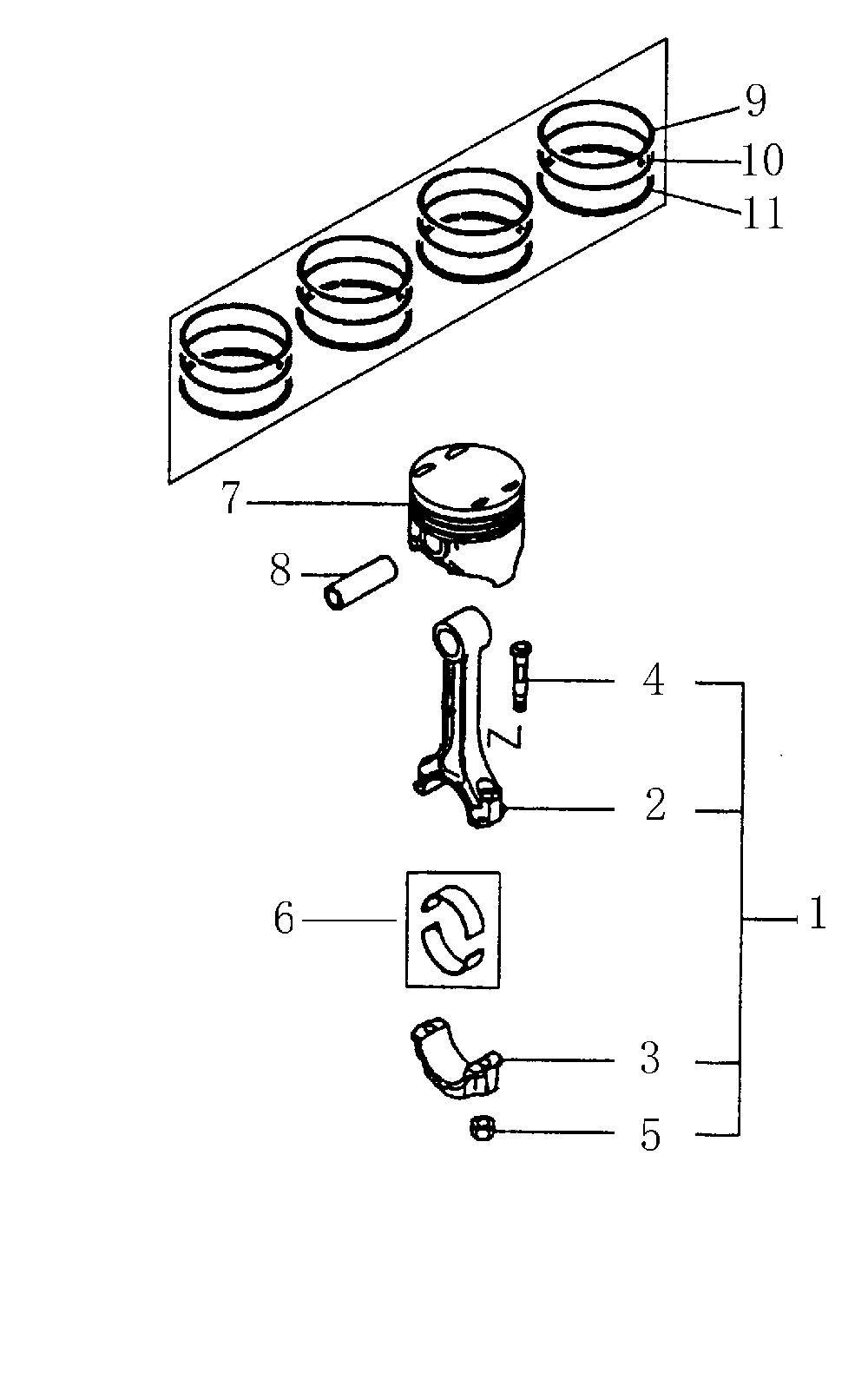

Byd f3 PISTON AND CONNECTING ROD | |||||
序号No. | 零件编号 Part No. | 名 称 Description | 数量 Qty | 备注 Rem | |
|
| 中 文 Chinese | 英 文 English |
|
|
1 | 471Q-1004901 | 连杆总成 | CONNECTING ROD ASSY | 4 |
|
2 | 471Q-1004005 | 连杆 | CONNECTING ROD | 4 |
|
3 | 471Q-1004006 | 连杆盖 | CAP, CONNECTING ROD | 4 |
|
4 | 471Q-1004007 | 连杆螺栓 | BOLT, CONNECTING ROD | 8 |
|
5 | 471Q-1004008 | 连杆螺母 | NUT, CONNECTING ROD | 8 |
|
6 | 471Q-1004011 | 连杆轴瓦 | BEARING,CONNECTING ROD | 8 |
|
7 | 476Q-1004001 | 活塞 | PISTON | 4 |
|
8 | 471Q-1004002 | 活塞销 | PIN,PISTON | 4 |
|
9 | 476Q-1004003 | 第一道活塞环 | PISTON RING, NO.1 | 4 |
|
10 | 476Q-1004004 | 第二道活塞环 | PISTON RING, NO.2 | 4 |
|
11 | 476Q-1004900 | 油环总成 | OIL RING ASSY | 4 | |
